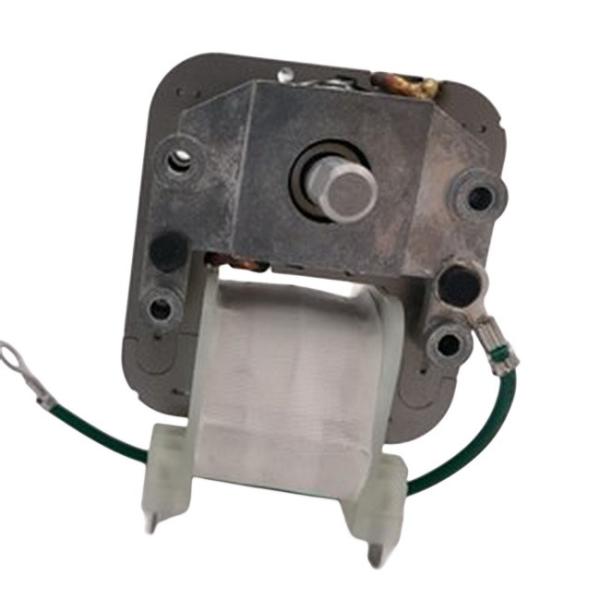

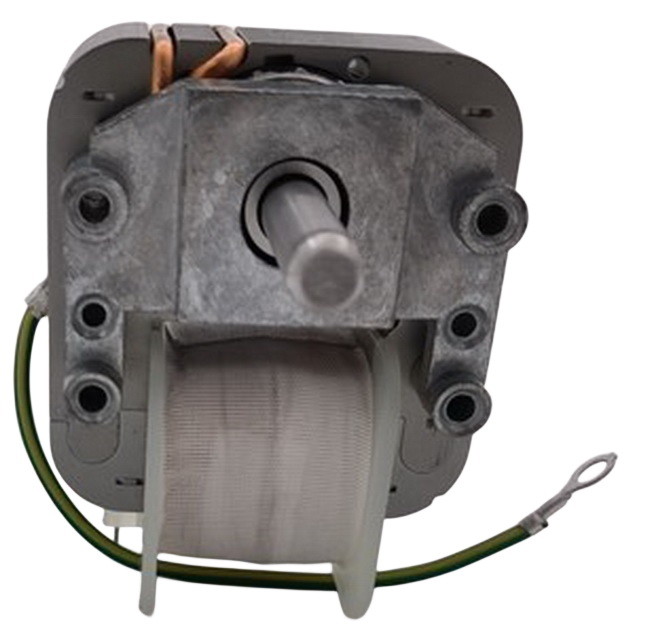

China 2.38" 49W 0.81A 115VAC C Frame Motor AC Single Phase Shade Pole
This C frame motor has a compact size with a width of 2.38 inches, making it suitable for applications with limited space. It is a single-phase AC motor with a shaded pole design, known for its simple structure and lower cost.
The motor is manufactured using high-efficiency electrical steel material, which possesses excellent magnetic conductivity and low magnetic loss. This material helps improve the motor's efficiency and performance.
Product Data Sheet:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP |
| Output |
| 9.53(3/8) | 110-120 | 50/60 | 3000 | 1.4 | 1/225 |
| 12.50(1/2) | 3000 | 3.1 | 1/112 |
| 15.63(5/8) | 3000 | 4.3 | 1/90 |
| 18.75(3/4) | 3000 | 6 | 1/60 |
| 21.88(7/8) | 3000 | 7.5 | 1/45 |
| 25.40(1) | 3000 | 9.3 | 1/40 |
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 |
| 34.93(1 3/8) | 3000 | 16 | 1/25 |
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 |
| 50.80(2) | 3000 | 24.8 | 1/13 |
Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements
Production Feature :
1. 2.38-inch High-Efficiency Electrical Steel C-FRAME Motor
2. Zinc Pressure Die-Cast Structure
3. Multiple Shaft Size Options
4. Multiple Mounting Structures
5. Quick-Connect Terminal Connection
6. Optional Wire Structure Connection
7. Independent Ground Wire Terminal Design
Air Flow Curve
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
